50mm Throttle Body Upgrade

This is a stock 09 CRF450 throttle body. The inlet is 53mm and tapers down to 44.5. Monday I'll bring it to the machine and bore the taper to 50mm. I'll keep this thread updated to show the bore and wiring steps for the install.






I like your Christ. I do not like your Christians. Your Christians are so unlike your Christ.
smo0oth1 is offline
Sponsored Links
Advertisement

post #2 of 17 Old 08-06-2011, 04:28 PM
Member

crisco's Avatar

Join Date: Mar 2011
Posts: 53
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Does that tb measure 50mm at the butterfly or will you have to make a new plate?

2009 Raptor 770R
Monster duals, FCI, PC3, +5 Hotrods, Kenz 105mm cylinder, CP 10.75:1, Barker RHC14 cam, Kibblewhite springs, Trex II port, +3 throttle body, Dynatek programmable, evac valve, 22" Haulers on Douglas wheels
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
crisco is offline
post #3 of 17 Old 08-06-2011, 07:17 PM Thread Starter

smo0oth1's Avatar

Join Date: Nov 2008
Location: Jennings La.
Posts: 2,932
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Send a message via Yahoo to smo0oth1
Quote:
Originally Posted by crisco View Post
Does that tb measure 50mm at the butterfly or will you have to make a new plate?
Yes, The butterfly is 50mm. Its just the last inch r so in the rear of the TB that chokes down.

I like your Christ. I do not like your Christians. Your Christians are so unlike your Christ.
smo0oth1 is offline

post #4 of 17 Old 08-06-2011, 08:28 PM
Senior Member

VelociRaptor's Avatar

Join Date: Nov 2007
Location: Vance, AL
Posts: 1,077
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
This TB is also used by the LTR drag guys.

Bo White
205-886-7043
VelociRaptor is offline
post #5 of 17 Old 08-06-2011, 10:29 PM
Member

crisco's Avatar

Join Date: Mar 2011
Posts: 53
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Nice. Odd they taper it so much. Now how do i get one to fit on my Raptor? Its gotta be cheaper than a WK tb...

2009 Raptor 770R
Monster duals, FCI, PC3, +5 Hotrods, Kenz 105mm cylinder, CP 10.75:1, Barker RHC14 cam, Kibblewhite springs, Trex II port, +3 throttle body, Dynatek programmable, evac valve, 22" Haulers on Douglas wheels
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
crisco is offline
post #6 of 17 Old 08-06-2011, 10:36 PM Thread Starter

smo0oth1's Avatar

Join Date: Nov 2008
Location: Jennings La.
Posts: 2,932
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Send a message via Yahoo to smo0oth1
Quote:
Originally Posted by crisco View Post
Nice. Odd they taper it so much. Now how do i get one to fit on my Raptor? Its gotta be cheaper than a WK tb...
The taper is more than likely the same size as the CRF head port. I've ported my XR head to match the 50mm the TB will be.
I'm 100% sure you could get this on your Raptor cheaper than the WK TB lol!

I like your Christ. I do not like your Christians. Your Christians are so unlike your Christ.
smo0oth1 is offline
post #7 of 17 Old 08-07-2011, 01:37 AM

DL700's Avatar

Join Date: Jan 2011
Location: JUNCTION CITY, OR.
Posts: 790
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
the intake design and inlet going into the throttle body have a great deal of effect on its performance, , even though the tb would work on other models(such as a Rap 700) it wouldnt make near the power

they are tapered for air speed


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
DL700 is offline
post #8 of 17 Old 08-08-2011, 05:56 PM Thread Starter

smo0oth1's Avatar

Join Date: Nov 2008
Location: Jennings La.
Posts: 2,932
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Send a message via Yahoo to smo0oth1

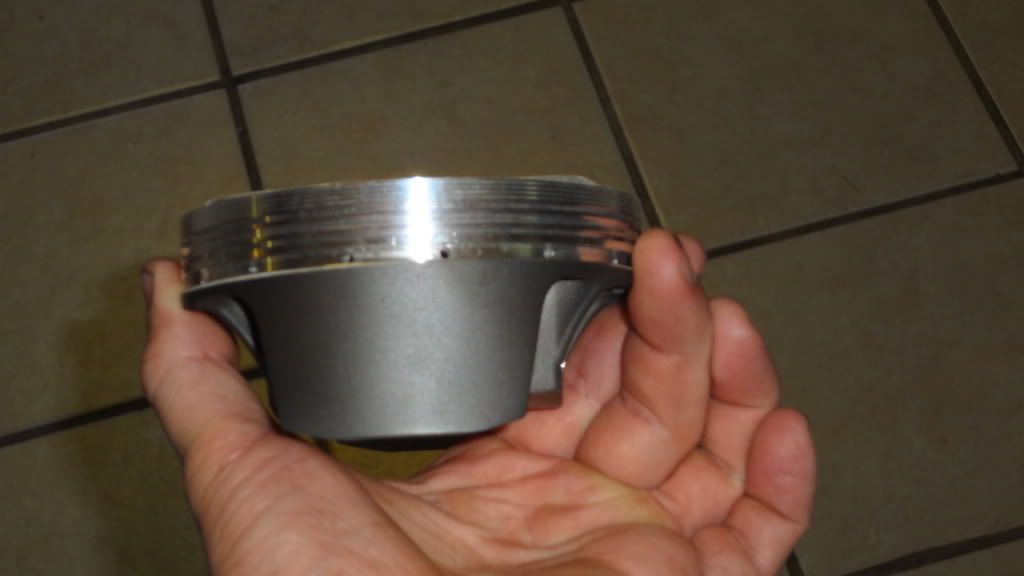

Got my piston back today(105mm & 12:1), Increased the valve sizes to 40mm and 33mm, pockets cut .040 deeper and to 23 degrees to match my XR head. Also had antifriction applied and deburred. Tomorrow I'll be sending it out with the crank to be stretched and balanced.




I like your Christ. I do not like your Christians. Your Christians are so unlike your Christ.
smo0oth1 is offline
post #9 of 17 Old 08-08-2011, 07:31 PM
Senior Member

tbird88's Avatar

Join Date: Nov 2009
Location: Florala, AL.
Posts: 2,293
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
whats the yellow button or knob for on the crf throttle body?


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
08 700XX PRM Six Pack Rack Hardline hour meter EHS EFI Controller EHS Lid with side vents Barker Full Exhaust Uni Air Filter alba nerfs elka stg4 fronts sti rims kutter front gbcxrex rear
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
tbird88 is offline
post #10 of 17 Old 08-08-2011, 07:43 PM

DL700's Avatar

Join Date: Jan 2011
Location: JUNCTION CITY, OR.
Posts: 790
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by tbird88 View Post
whats the yellow button or knob for on the crf throttle body?
choke/idle


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
DL700 is offline
